ROS 2 Teleop Guide

Control Your Robot in Real-Time

---

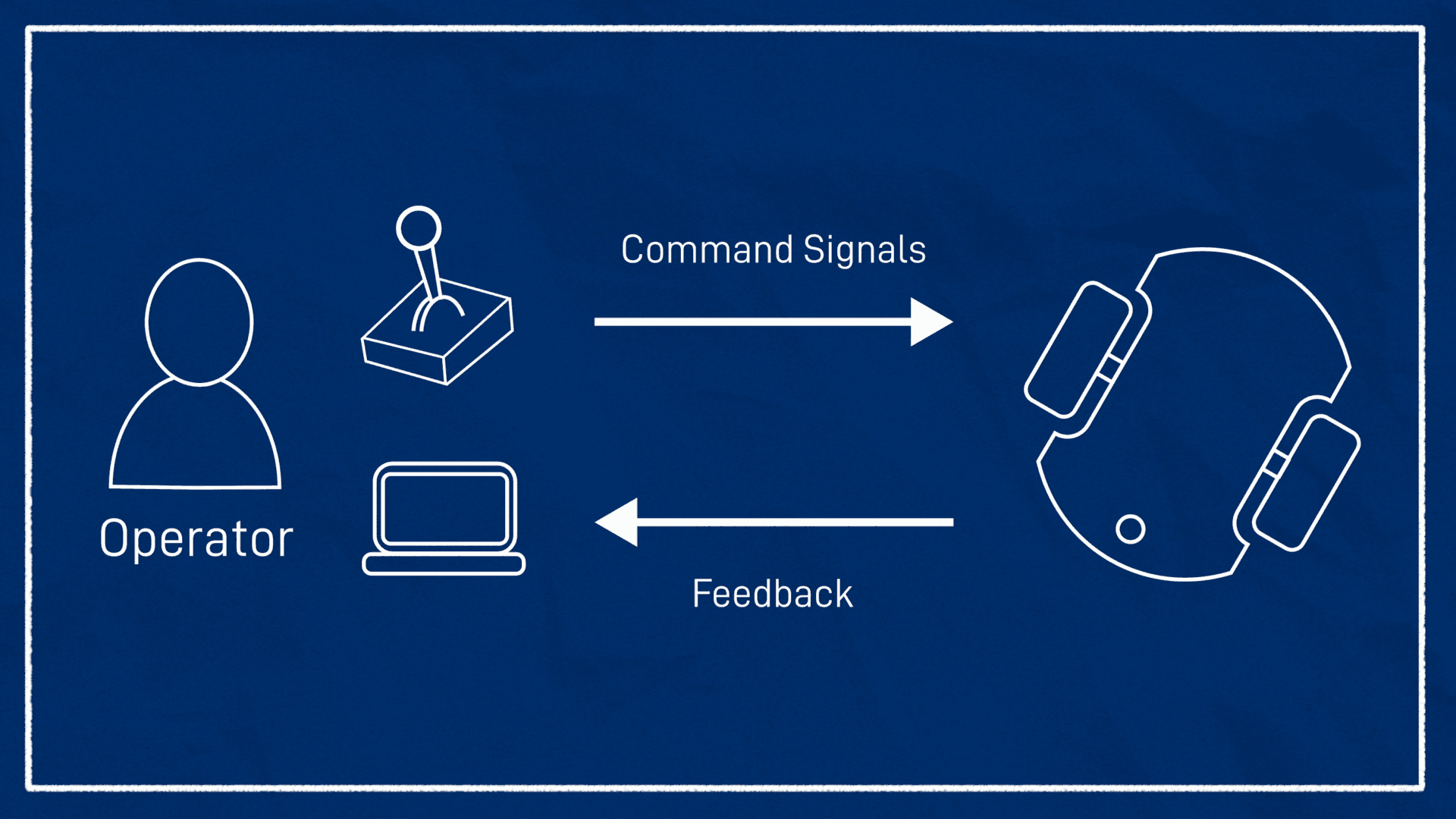

What is Teleoperation?

Teleoperation (remote control) is a powerful system that enables you to control your robot remotely in real-time. You can precisely navigate your robot using a physical joystick, keyboard, or virtual control panels.

💡 Important Note: All control methods are coordinated by the twist_mux package, and only a single topic /mobile_base_controller/cmd_vel is sent to the controller.

---

Main Features

1. Priority Management

When multiple velocity topics are active simultaneously, the one with the highest priority is automatically selected. This prevents conflicts between different control sources.

How It Works:

• A priority value is assigned to each input topic
• When multiple topics are active simultaneously, the highest priority one is selected
• Commands from other topics are ignored

2. Turbo Mode

Instantly increase or decrease the robot's speed via joystick.

⚠️ Warning: The turbo interface is NOT available for ALL velocity sources. It only allows adjusting the velocity command that the joystick sends to the robot.

3. Input Locking

Lock specific inputs to disable lower priority commands.

Usage:

• Locking is performed with std_msgs/msg/Bool messages
• When the lock topic is True, the corresponding input is locked
• All inputs with lower priority than the locked input are disabled

---

Moving the Robot

Critical Safety Information

🚨 Attention! The /mobile_base_controller/cmd_vel topic requires TwistStamped messages and validates the message timestamp. Publishing directly to this topic is not possible and is highly discouraged.

Recommended Method: /cmd_vel Topic

If you're creating a custom control node, publish velocity commands to the /cmd_vel topic.

Example Usage:

ros2 topic pub /cmd_vel geometry_msgs/msg/Twist "linear:
  x: 0.0
  y: 0.0
  z: 0.0
angular:
  x: 0.0
  y: 0.0
  z: 0.5" -r 10

This command rotates the robot at 0.5 rad/s.

Important Warnings

Obstacle Detection:

🛑 When publishing via /cmd_vel, obstacle detection is disabled. The robot will move in the direction and speed you specify, without considering obstacles in the environment.

Continuous Motion:

• To keep the robot moving continuously, you must publish velocity commands at a 10Hz frequency
• Each command is valid for 0.5 seconds
• If the robot stops after this time, the command must be repeated

Topic Priorities:

📌 The /cmd_vel topic has the lowest priority. When using it:

• Ensure no other velocity topics are active
• Verify that lock inputs are set to False

---

Configuration

You can customize your robot's behavior by creating custom configurations for twist_mux.

Step 1: Create Configuration Directory

mkdir -p ~/.pal/config

Step 2: Create Configuration File

touch ~/.pal/config/99_my_twist_mux_config.yaml

💡 Tip: The filename should start with a number (e.g., 99_). This ensures the file is loaded last and overrides default configurations.

Step 3: Define Parameters

/twist_mux:
   ros__parameters:
      # Your custom parameters here
      topics:
        cmd_vel:
          topic: cmd_vel
          timeout: 0.5
          priority: 10

        joy_vel:
          topic: joy_vel
          timeout: 0.5
          priority: 100

        nav_vel:
          topic: nav_vel
          timeout: 0.5
          priority: 50

      locks:
        - name: joystick_lock
          topic: joy_priority
          timeout: 0.5
          priority: 255

Step 4: Restart Module

pal module restart joystick

Reverting to Default Settings

To return to the default PAL configuration:

rm ~/.pal/config/99_my_twist_mux_config.yaml
pal module restart joystick

📝 Note: This change is persistent and will be loaded every time you start the joystick module.

---

ROS 2 API Reference

All ROS 2 interfaces provided by the teleoperation system:

Topics

Actions

---

Further Reading and Resources

Recommended Documentation

Assisted Teleop

Advanced teleop usage with obstacle detection and safety features. Built-in obstacle avoidance mechanism for safe robot control.

Twist_mux Documentation

Official twist_mux package documentation and advanced features. Priority management, locking mechanisms, and configuration details.

ROS 2 Navigation

Nav2 integration for autonomous navigation. Seamless transition between teleop and autonomous navigation.

External Resources

• Twist_mux GitHub Repository
• ROS 2 Navigation Stack
• ROS 2 Documentation

---

Example Use Cases

Scenario 1: Joystick Control

# Start joystick module
pal module start joystick

# Control robot with joystick
# Use special buttons for turbo

Scenario 2: Keyboard Control

# Start keyboard teleop
ros2 run teleop_twist_keyboard teleop_twist_keyboard --ros-args --remap cmd_vel:=key_vel

Scenario 3: Custom Node Control

import rclpy
from rclpy.node import Node
from geometry_msgs.msg import Twist

class CustomTeleopNode(Node):
    def __init__(self):
        super().__init__('custom_teleop')
        self.publisher = self.create_publisher(Twist, '/cmd_vel', 10)
        self.timer = self.create_timer(0.1, self.publish_velocity)  # 10Hz

    def publish_velocity(self):
        msg = Twist()
        msg.linear.x = 0.5  # Move forward
        msg.angular.z = 0.0
        self.publisher.publish(msg)

def main(args=None):
    rclpy.init(args=args)
    node = CustomTeleopNode()
    rclpy.spin(node)
    rclpy.shutdown()

---

Frequently Asked Questions

The robot isn't responding to commands, what should I do?

1. Check if twist_mux is running: ros2 node list | grep twist_mux
2. Check if topics are active: ros2 topic list
3. Check lock status: ros2 topic echo /joy_priority
4. Review priority settings

Can multiple control methods be used simultaneously?

Yes, but only the one with the highest priority will be active. Others are ignored by twist_mux.

Does turbo mode work on all devices?

No, turbo mode is only available for joystick. This feature is not available for other control methods.

---

Conclusion

The ROS 2 Teleoperation system enables you to control your robot safely and flexibly. With twist_mux's priority management, locking mechanisms, and turbo features, you can achieve professional-level robot control.

Remember:

• ✅ Always prioritize safety
• ✅ Use assisted teleop when obstacle detection is needed
• ✅ Customize configurations for your specific needs
• ✅ Follow the documentation regularly

---

Mehmet Emin Ateş
